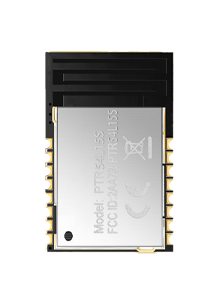

PTR54L15S
PTR54L15S
The PTR54L15S module is based on Nordic new best-in-class ultra-low power multiprotocol radio SoC nRF54L15, the next level with excellent processing power and efficiency, expanded memory, and new peripherals. A massive leap forward in performance, efficiency, and security. Provides long range: Best-in-class multiprotocol radio with up to +8 dBm TX power and -96 dBm RX sensitivity for 1 Mbps Bluetooth Low Energy. Prolongs battery life or reduces battery size: Efficient processing, ultra-low power radio, and minimal sleep currents. The module is best in class for RF performance and low power consumption,provide a complete solution with no additional RF design
Nordic nRF54L15 SoC
BLE 6.x/Mesh/Thread/Matter/CS
PCB Antenna
ARM® Cortex™ 33, RISC-V
13 GPIOs
15x10x1.8mm
Specification
Part Number
PTR54L15S
Chipset
Nordic nRF54L15 SoC
Protocol
BLE 6.x/ Mesh/ Thread/ Matter/ CS
Flash/RAM
1.5MB NVM/ 256KB RAM
Bluetooth 5 PHYs
2Mbps/ 1Mbps/ 500Kbps/ 125Kbpss
2.4Ghz Proprietary
4 Mbps
TX Power MAX
+8dBm
RX Sensitivity
-96dBm@1Mbps
TX Peak Current
~5mA@0dBm
RX Peak Current
~3.2mA (BLE @ 1Mbps)
Antenna
PCB Antenna
Supply Voltage
1.7~3.6V
Size
15x10x1.8mm
GPIO
13
Product Information
Name
Description
Size
Update
Download Times
PTR54L15S
Datasheet
13.83MB
2025-05-05
