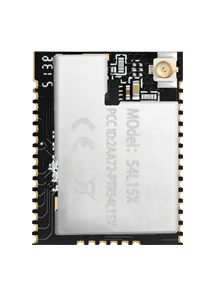

PTR54L15X
PTR54L15X
The PTR54L15X module is based on Nordic new best-in-class ultra-low power multiprotocol radio SoC nRF54L15, the next level with excellent processing power and efficiency, expanded memory, and new peripherals. A massive leap forward in performance, efficiency, and security. Provides long range: Best-in-class multiprotocol radio with up to +8 dBm TX power and -96 dBm RX sensitivity for 1 Mbps Bluetooth Low Energy. Prolongs battery life or reduces battery size: Efficient processing, ultra-low power radio, and minimal sleep currents. The module is best in class for RF performance and low power consumption,provide a complete solution with no additional RF design
Nordic nRF54L15 SoC
BLE 6.x/Mesh/Thread/Matter/CS
IPEX Antenna
ARM® Cortex™ 33, RISC-V
31 GPIOs
14.5x13x1.8mm
Specification
Part Number
PTR54L15X
Chipset
Nordic nRF54L15 SoC
Protocol
BLE 6.x/ Mesh/ Thread/ Matter/CS
Flash/RAM
1.5MB NVM/ 256KB RAM
Bluetooth 5 PHYs
2Mbps/ 1Mbps/ 500Kbps/ 125Kbps
2.4Ghz Proprietary
4 Mbps
TX Power MAX
+8dBm
RX Sensitivity
-96dBm@1Mbps
TX Peak Current
~5mA@0dBm
RX Peak Current
~3.2mA(BLE @ 1Mbps)
Antenna
IPEX Antenna
Supply Voltage
1.7~3.6V
Size
14.5x13x1.8mm
GPIO
31
